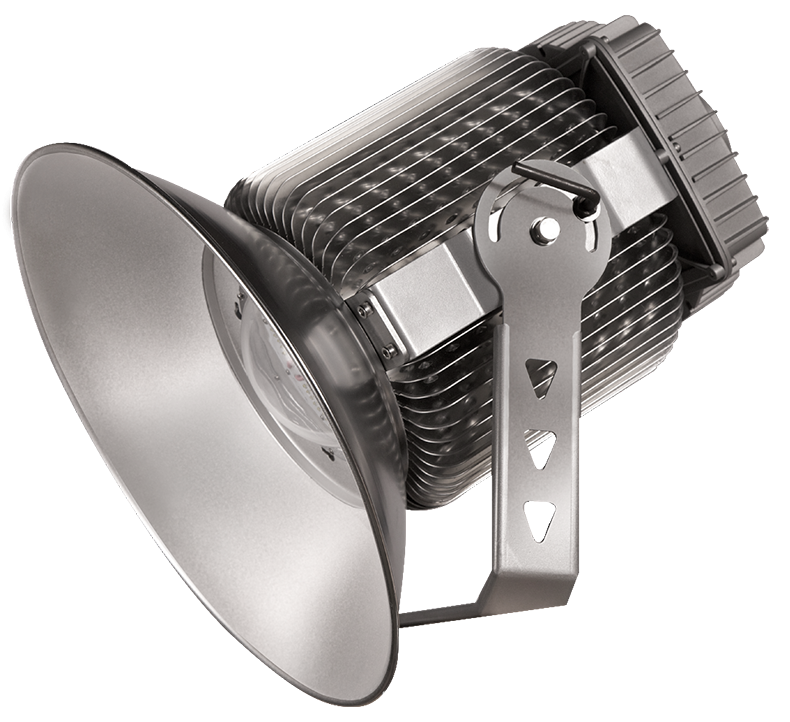

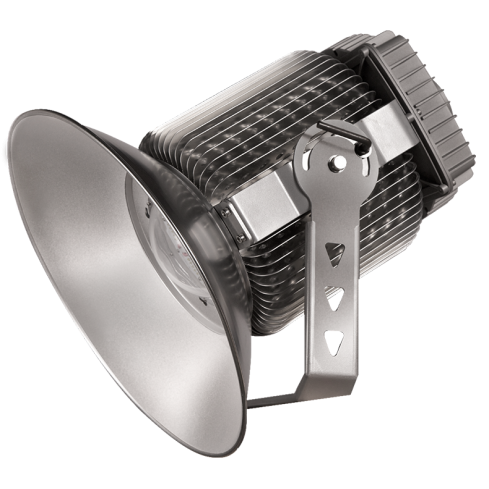

SPEC PRO SPORTS LIGHTER
300W & 400W
Replaces up to a 2500W Metal Halide fixture.
Tính năng sản phẩm
FRAME
Precision Cast Aluminum with Corrosive Resistant Powder Coat Finish & Stainless Steel Hardware.
ACRYLIC LENS
Clear (CL) or Frosted (FR)
HEAT SINK
Innovative double fold fin aluminum heat sink technology.
FINISH
Corrosive Resistant Polyester Powder Coat: Gray (GR), Black (BL), White (WH), RAL
EXPECTED LIFE
Over 100,000 hours
SỐ LIỆU ẢNH
THÔNG SỐ SẢN PHẨM
300W
REPLACES (METAL HALIDE)
500W
COLOR TEMP: DELIVERED LUMENS
3000K (WW): 20377 lm
4000K (NW): 21450 lm
5000K (CW): 22145 lm
SYSTEM POWER
220W
WEIGHT
Luminaire: 44lbs
Drivers & Housing: 12lbs
DOWNLOADS
400W
REPLACES (METAL HALIDE)
500W
COLOR TEMP: DELIVERED LUMENS
3000K (WW): 20377 lm
4000K (NW): 21450 lm
5000K (CW): 22145 lm
SYSTEM POWER
220W
WEIGHT
Luminaire: 44lbs
Drivers & Housing: 12lbs
DOWNLOADS
OPTICS
Beams: Type 10°x10°, 15°x15°, 30°x30°, 60°x60°, 85×45°, 85°x90°, 60°x135°,60°x185°
CRI: >74; >80 (optional)
ELECTRICAL
Standard Voltage: 90-305 VAC
Optional Voltage: 347V-480V (Available with remote step-down transformer)
Surge Protection Device: UL1449/ANSI, 10kA/10Kv
Power Factor: >0.95%
Input Line Frequency: 50/60 HZ
THD: <20% Dimmable (DM): 0-10V (Optional)
ELECTRICAL LISTING
UL 1598 Tested, ETL Listed-Wet Locations
CONSTRUCTION
Material: Precision Cast Aluminum
Lens: Tempered Glass, Clear (CL) or Frosted (FR)
LED Chips: Lumileds Lexeon-T
Remote Driver: Philips driver rated to 100,000 hrs. at 75C (CT) & power factor >95%
Heat Sink: Double Folded Aluminum Fins
FINISH
Corrosive Resistant Polyester Powder Coat
Gray (GR), Black (BL), White (WH)
Optional Finish: RAL Number
RATINGS
Light Engine: IP 66
Luminaire: IP65
LIFE
Expected Life: over 100,000 hrs.
OPERATING TEMPERATURE
-31°F-165°F
ACCESSORIES
Occupancy Sensor: Optional
Adjustable Photocells: 110-130V (APC-1); 208-277V (APC-2)
Visor Glare Shield: (VGS)
Bullseye Glare Shield: (BGS)
WARRANTY
LEDs: 10-years
Driver: 5-years

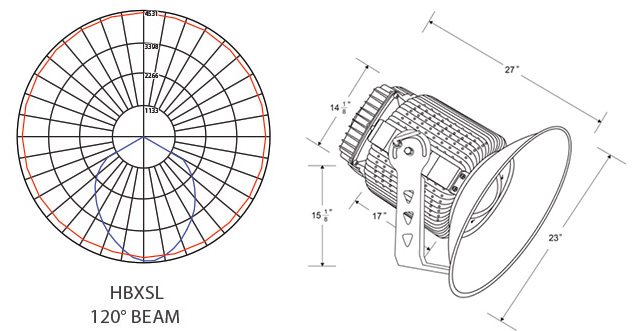

Kích thước sản phẩm
